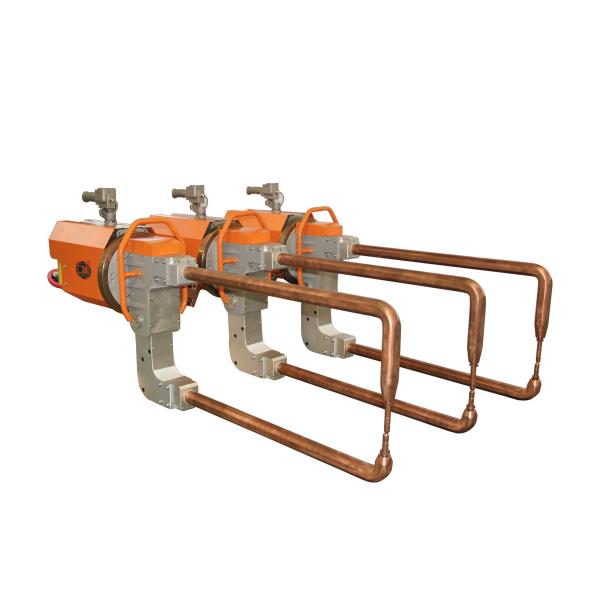

0.5MPA SS Spot Welding Machine

Brand Name : XWH

Model Number : DN2

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : $3,000.00-$5,000.00

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500 Set/Sets per Week

Delivery Time : 15 Working days

Packaging Details : wooden Case

Product Name : Semi Automatic Stainless Steel Mini Portable Spot Welding Machine

Machine type : Auto Repair Tools

Rated Capacity : customized

After Warranty Service : Video technical support, Online support, Spare parts, Field maint

Weight (KG) : 80 KG

Max. Welding Thickness : 3.5+3.5mm

Rated Duty Cycle : 50%

Voltage : 380V

Contact Now

Semi Automatic Stainless Steel Mini Portable Spot Welding Machine

Details

Features

Item/models	Unit	DN2-35X	DN2-35C	DN2-45X	DN2-45C	DN2-65X	DN2-65C
power at 50%	KVA	35	35	45	45	65	65
Maximum short circuit current	KVA	15	15	16	16	46	46
Secondary unload voltage	V	5.7	5.7	6.3	6.3	8	8
Voltage at 50Hz/60Hz	V	380	380	380	380	380	380
Distance between the arms	MM	120-280	100	120-330	100	160-430	100
Max.strength at electrodes	N	3500	3500	3500	3500	3500	3500
Working stroke	MM	15-45	15-25	15-45	15-25	15-45	15-25
Max.stroke	MM	50-120	60/100/140	50-120	60/100/140	50-120	60/100/140
Arm length	MM	240-600	200-500	300-800	200-500	400-1100	200-500
Compressed Air supply	MPA	0.5	0.5	0.5	0.5	0.5	0.5
Max thickness of mild steel sheet with min.length s arm	MM	3+3	3+3	4+4	4+4	5+5	5+5
With 500mm arms	MM	2+2	2+2	3+3	3+3	3+3	3+3
With maximum length arms	MM	1.2+1.2	1.2+1.2	2+2	1.8+1.8	2.0+2.0	2.0+2.0
Cross wire maximum	MM	14+14	14+14	16+16	16+16	20+20	20+20
Cooling water pressure drop	MPA	0.05	0.05	0.05	0.05	0.05	0.05
Cooling water flow	l/MIN	12	12	12	12	12	12

The spot welding machine is composed of a machine base, a pressure mechanism, a welding circuit, an electrode, a transmission mechanism, a switch and a regulating device, and the main part is a pressure mechanism, a welding circuit and a control device.
Pressure mechanism is the mechanism responsible for pressure in resistance welding.
Welding circuit The welding circuit refers to the conductive path composed of all the parts that participate in the conduction of welding current except for welding.

Control device The control device is composed of a switch and a synchronous control. The function of the switch in spot welding is to control the on and off of the current. The function of the synchronous control is to adjust the size of the welding current and accurately control the welding procedure. When the network voltage fluctuates Can automatically compensate

Specifics

0.5MPA SS Spot Welding Machine
